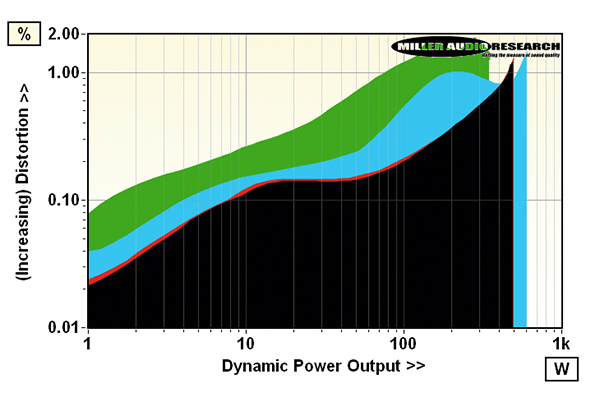

The REF 330M may not be the most powerful amp developed by Audio Research (that’s the limited edition 750SEL), but it’s still the most powerful tube amp I’ve tested over a period of 40 years! Previously, ARC’s REF 160M delivered 110W and the GS150 170W [HFN Aug ’18 & Jan ’15] into 8 and 4ohm loads. However, the new 330W-rated monoblock not only buries these predecessors, it smashes ARC’s specification by delivering no less than 410W into both 8ohm and 4ohm via its 8/4ohm taps, respectively. Under dynamic conditions [see Graph 1] the REF 330M supports 500W into 8ohm (8ohm tap) and 490W, 580W and 350W into 4, 2 and 1ohm (all via the 4ohm tap). With an 18.7A current capacity, and more if the 1% THD limit is relaxed, the REF 330M will clearly drive all likely partnering loudspeakers with ease.

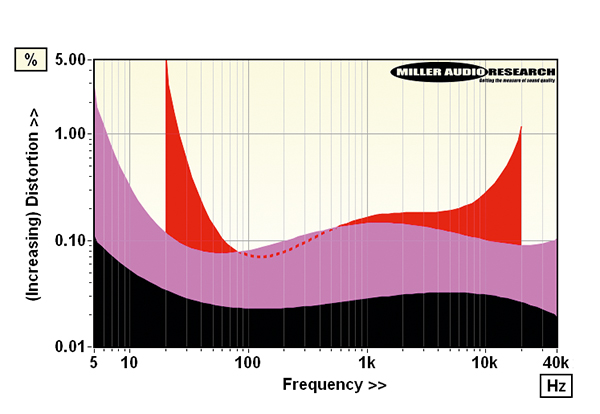

Distortion rises gently with power output, from 0.025%/1W to 0.11%/10W, 0.24%/100W and 0.64% at the rated 330W (all re. 1kHz/8ohm). Versus frequency there’s the inevitable and sharper increase in THD at low frequencies – 0.03%/1W and 0.12%/10W and 3.1%/50W (all re. 20Hz/8ohm) – as the output transformer cores reach saturation [see Graph 2, below]. Bass performance, and overall system response, is necessarily modified by the 330M’s ~0.7ohm output impedance but this value is still lower than achieved by many other tube amps. Into a non-reactive load, the 330M’s response has –3dB limits of 5Hz-105kHz/8ohm, falling slightly more quickly to –0.2dB, –0.5dB and –1.0dB/20kHz into 4, 2 and 1ohm loads (all re. 4ohm tap). Noise is well managed for such a large and powerful tube amp, the 86dB A-wtd S/N ratio (re. 0dBW) being a very respectable figure. PM
