Aiwa AX-7400 receiver Lab Report

Lab Report

That Aiwa describes the amplifier section of its AX-7400 receiver as an OTL (output transformerless) complementary SEPP (single-ended push-pull) design reflects what a novelty the everyday amplifier circuit of today was back in 1978. The specification is conservative too, Aiwa's modest 25W/8ohm and 30W/4ohm rating beaten on test to the tune of 2x30W/8ohm and 2x40W/

4ohm with sufficient in reserve to support peaks of 38W, 61W, 74W and 59W into 8, 4, 2 and 1ohm loads respectively [see Graph 1, below]. As befits an amplifier of this pre-CD vintage, when line-level sources meant 500mV rather than 2V, the overall gain is a very high +46.7dB and the A-wtd S/N ratio slightly below average at 80dB (re. 0dBW). With just 65mV required to raise the rated 25W/8ohm output, an in-line attenuator would get better use out of Aiwa's volume control if the AX-7400 were pressed into a modern system.

Distortion increases with level at and above 10W, although principally at bass and midrange rather than high frequencies, for example from 0.022%/1W to 0.06%/10W at 20Hz [see Graph 2, below]. With all tone controls defaulted to '0' the response shows a bass roll-off of –1.5dB/20Hz and a more gentle treble roll-off of –0.5dB/20kHz to –3.9dB/100kHz but these features are exaggerated into lower impedances. Into 2ohm the treble falls away to –1dB/8kHz and –3dB/20kHz while distortion, at 1kHz/10W, increases from 0.016% (8ohm) to 0.07%. Into easier 8ohm loads the AX-7400's loudness contour has a significant impact – raising bass to +9dB/50Hz and treble to +8dB/20kHz while the 'high filter' has a –6dB point at 8kHz and a second-order roll-off thereafter. PM

1220vintage.lab1

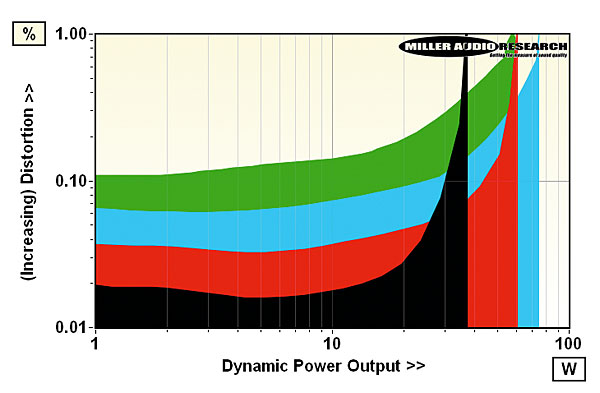

Dynamic power output vs. distortion up to 1% THD into 8ohm (black trace), 4ohm (red), 2ohm (cyan) and 1ohm (green) speaker loads. Max current is 7.7A

1220vintage.lab2

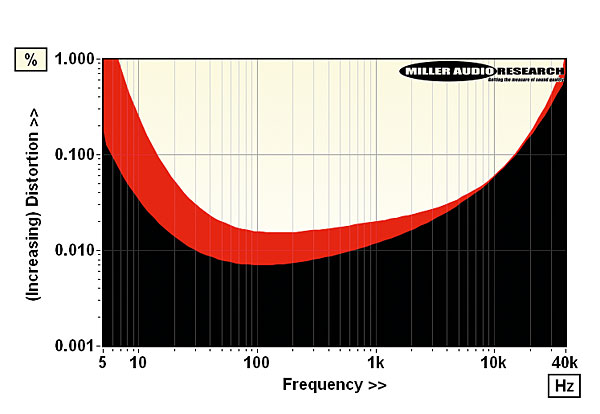

Distortion versus extended frequency from 5Hz-40kHz at 1W/8ohm (black) and 10W/8ohm (red)

Power output (<1% THD, 8/4ohm) 30W / 40W
Dynamic power (<1% THD, 8/4/2/1ohm) 38W / 61W / 74W / 59W
Output imp. (20Hz–20kHz/100kHz) 0.065–0.22ohm / 0.62ohm
Freq. resp. (20Hz–20kHz/100kHz, 0dBW) –1.5dB to –0.48dB/–3.85dB
Input sensitivity (for 0dBW/25W) 13mV / 65mV
A-wtd S/N ratio (re. 0dBW/25W) 80.2dB / 94.2dB
Distortion (20Hz-20kHz, 10W/8ohm) 0.016–0.18%
Power consumption (Idle/rated output) 14W / 101W
Dimensions (WHD) / Weight 420x150x360mm / 9kg
