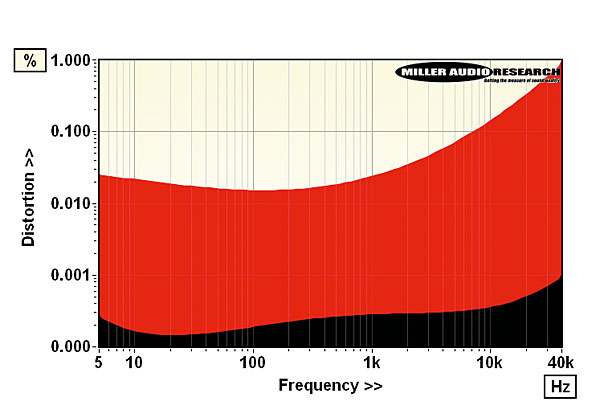

An established part of the Simaudio stable, the MOON 740P preamp is also the 'squeaky clean' half of this amplifier duo. With the offset at 0dB, overall gain is +6dB (or x2, balanced in/out) and the A-wtd S/N ratio a fabulously wide 100dB (re. 0dBV). Maximum output is a full 20V from a standard 73ohm source impedance while the response is exceptionally flat and extended – within ±0.04dB from 1Hz-100kHz. Distortion is also very low indeed at just 0.0001-0.0003% (20Hz-20kHz, re. 0dBV) – some two orders of magnitude lower than that of the partnering 860A v2 power amp [black vs. red traces, Graph 2 below].

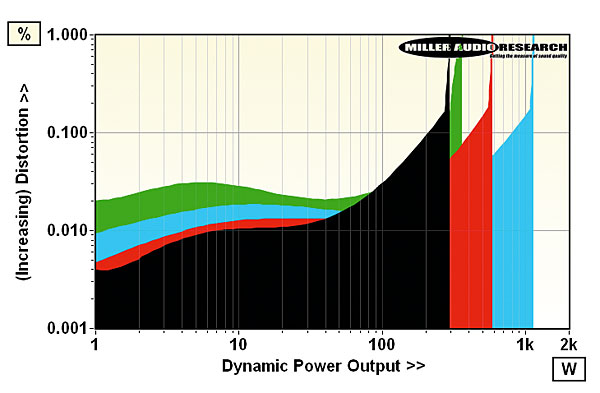

Talking of which... the MOON 860A v2 power amp bested its 225W/8ohm rating with ease at 2x289W/8ohm and although its 4ohm output heads north of 530W it is impossible to measure a continuous <1% THD maximum output without popping the 5A/250V line fuse. Dynamic measurements are safer, revealing a capacity of 297W, 585W and 1.13kW into 8, 4 and 2ohm loads but show a limit of 360W/1ohm [see Graph 1, below]. Distortion increases gently with level from 0.003%/1W, 0.005%/10W and 0.025%/100W up to 0.06% at the rated 225W (all at 1kHz), and at low and high frequencies [red trace, Graph 2] to the tune of 0.008%/20Hz and 0.015%/20kHz (all 10W/8ohm). While this and the mild treble roll-off (–0.6dB/20kHz to –6.9dB/100kHz) suggests some slight 'character' on the 860A v2's part, the fabulous low 0.005ohm output impedance (20Hz-3kHz) suggests great control while the huge 96dB A-wtd S/N ratio (re. 0dBW) promises super-silent backgrounds. Finally, the DC-coupled output option gives a +0.9dB boost at 1Hz (!) while the AC-coupled mode rolls away to –1dB/10Hz to –3dB/5Hz. PM
