Constellation Audio Pictor/Taurus Stereo pre/power amplifier Lab Report

As the distinctive, fully balanced audio circuits of the Pictor/Taurus are ‘distilled’ from the Inspiration pre/power [HFN Jul ’15] and Virgo/Centaur [HFN Jul ’13] there are obvious parallels to their performance. The Pictor preamp still uses a rotary-encoded volume control (addressing a polysilicon resistor array) with an accuracy of –0.8dB over the top 10dB but a superior –0.4dB over a fuller 80dB range. It offers the same +26.5dB gain (balanced) and remarkably flat and extended response (+0/–0.09dB from 1Hz-100kHz) and while the 91dB A-wtd S/N ratio and 119ohm source impedance exactly match the Inspiration, distortion at 0.0004–0.0009% (re. 0dBV) is lower and a better match with the Virgo [black trace, Graph 2]. Distortion increases with preamp output above 1V (0.0009%) to 25V (1%), the latter voltage sufficient to drive any power amp on the hi-fi planet.

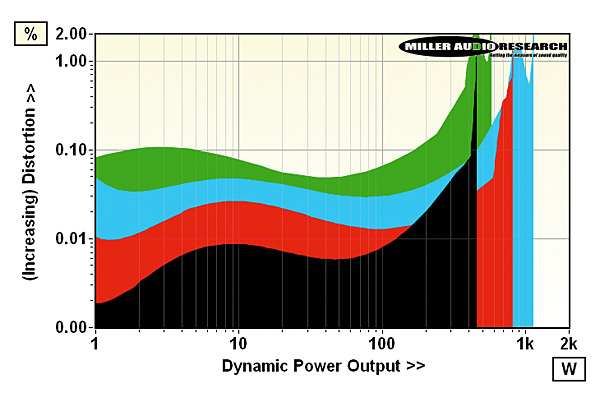

Dynamic power output versus distortion into 8ohm (black trace), 4ohm (red), 2ohm (blue) and 1ohm (green) speaker loads. Maximum current 24.1A


THD vs. extended freq for Pictor preamp (1V out, black trace) vs. Taurus Stereo (10W/8ohm, blue)

Constellation rates the new Taurus Stereo at 250W/8ohm – a specification demolished by the 2x415W/8ohm and 2x655W/4ohm measured here, increasing to 455W, 820W and 1.14kW into 8, 4 and 2ohm under dynamic conditions. In common with the Inspiration, output into 1ohm loads is limited [see Graph 1] but it’ll still drive any likely partnering speaker with ease. The uniform 0.033-0.045ohm (20Hz-20kHz) output impedance is also unchanged as is its response – still flat to –0.4dB/100kHz and (unlike the Centaur, but just like the Inspiration) rolled away to –2.1dB/20Hz and –10dB/10Hz in the deep/subsonic bass. The real advantage in the Taurus’s improved PSU is not in power output but in its impressively reduced noise – the A-wtd S/N here is 5dB better at 96dB (re. 0dBW) while THD [blue trace, Graph 2] is not dissimilar at 0.004-0.04% (20Hz-20kHz, 10W). PM

Power output (<1% THD, 8/4ohm): 415W / 665W
Dynamic power (<1% THD, 8/4/2/1ohm): 455W / 820W / 1.14kW / 580W
Output imp. (20Hz–20kHz, pre/power): 119ohm / 0.034–0.051ohm
Freq. resp. (20Hz–100kHz, pre/power): +0.0 to –0.09dB / –2.4 to –0.4dB
Input sensitivity (for 0dBV/0dBW): 48mV (pre) / 157mV (power)
A-wtd S/N ratio (re. 0dBV/0dBW): 91.0dB (pre) / 96.1dB (power)
Distortion (20Hz-20kHz, 1V/10W) : 0.0004–0.0009%/0.004–0.038%
Power consump. (pre/idle/rated o/p): 27W / 88W/940W
Dimensions (WHD Pre/Power): 432x133x381/476x297x603mm
Price (pre/power): £22,000/£24,000
