‘The most powerful integrated amplifier we have ever made’, says Marantz... True, but only if you base this claim on Marantz’s own specifications. So, while the earlier flagship PM-10 [HFN Sep ’17] was rated at 200W/8ohm, in practice its bridged Ncore NC500 Class D amps (rated by Hypex at 700W/4ohm in single channel guise) offered sufficient volts to maintain 625-610W from 8 down to 4ohm loads (not indefinitely) and 710-605W from 8 to 4ohm under dynamic conditions. By contrast, the new Model 10’s more advanced, Purifi-based Class D stage is rated at 250W/8ohm but delivers 340W/8ohm with a near perfect doubling to 670W/4ohm. The dual-mono Class D amps, with individual switchmode PSUs, have no dynamic headroom so the transient output (10msec/<1% THD) is 335W, 675W and 1.31kW into 8, 4 and 2ohm loads, falling to 745W/1ohm – a maximum current of 27.3A [see Graph 1, below], beating the PM-10’s 13A.

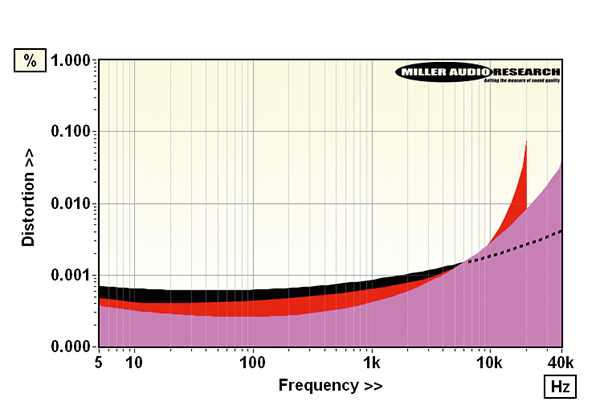

These bespoke Purifi modules offer lower distortion, lower noise and even better response/load tolerance than the Ncore and Hypex UcD modules that preceded them [HFN Oct ’22]. This is reflected in the low 0.00025-0.0075% distortion at 10W/8ohm [pink trace, Graph 2], increasing to 0.00045-0.066% at 100W/8ohm [red trace; all re. 20Hz-20kHz]. The older PM-10 managed 0.0012-0.032% at 10W/8ohm. The Model 10’s 93dB A-wtd S/N ratio (re. 0dBW) also bests the PM-10 by 2dB while its response is now a flatter ±0.08dB from 20Hz-20kHz into all loads from 8ohm down to 1ohm – vastly superior to ‘old school’ Class D amplifiers. Finally, the Model 10 amplifier is dual mono, if not entirely symmetrical in layout [see inside pic, opposite], so stereo separation is a super-wide 110dB midband. PM
